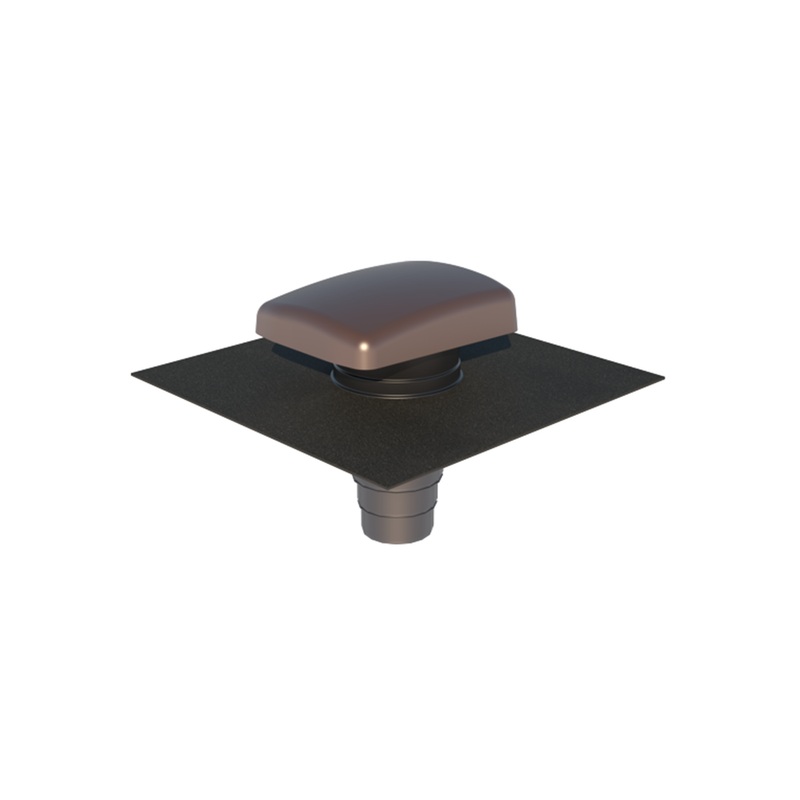

Ventilation Tile Hooded Universal UB41 + Adaptor Sepia (Ubbink)

SKU: UB41-SEPIA

Overview

The UB41 Universal Roof Terminal is engineered to suit most tiled and slated pitched roofsno need to match tile or slate profiles. It features a streamlined hood on a 160mm diameter upstand, joined to a 500500mm Ubiflex flashing skirt, and comes with a stepped adaptor for duct connection. It’s also ideal for terminating soil and vent pipes where no external pressure test is required.

Key Features

• Large free-vent area: up to 18,750mm (at 160mm) for high airflow
• Stepped adaptor included: fits 100/110/125/150mm ducting, with the 160mm size fitting directly
• Ubiflex flashing skirt (500500mm) adapts to most roof profiles
• Constructed from UV-stable polypropylene (PP)
• Colour-matched Sepia hood with black Ubiflex skirt
• Low-profile hood maintains a discreet roof appearance
• Simple installation: cut adaptor to required diameter and solvent-weld in place; skirt fits flush under tiles or slates

Technical Specifications

Material: Polypropylene (PP) with Ubiflex flashing
Colour: Sepia hood with black flashing skirt
Free Vent Area: 7,850mm (100mm) to 18,750mm (160mm)
Compatible Duct Sizes: 100, 110, 125, 150mm (with adaptor); 160mm (direct)
Flashing Skirt: 500500mm Ubiflex
Hood Upstand Diameter: 160mm
Unit Gross Size: 500mm length 500mm width
Net Weight: Approx. 1.66kg
Minimum Roof Pitch: 22.5
Includes Adaptor: Yes cut-to-fit stepped adaptor

Performance & Installation Highlights

• Provides up to 18,750mm free-vent area, supporting airflow rates between 100225m/h depending on duct size
• Adaptable to a wide range of roof pitches and profiles thanks to the flexible skirt and versatile adaptor
• Installation is quick and straightforward: simply cut the adaptor to the correct size, glue in place, and fit the flashing skirt beneath roof tiles or slates for a watertight seal
