CELLA is a reputable UK-based brand with products stored and distributed from warehouses across the UK and Ireland. With extensive expertise in the wine storage and wine fridge industry, the founders have ensured the productrange seamlessly combines premium quality with competitive pricing, setting a new standard in the market.

Additionally, features such as shelves are designed with practicality in mind, accommodating real-world bottle sizes, including Burgundy and Rhone bottles, as standard across their range of wine fridges.

The combination range consists of two fridges joined together offering you the option to mix a wine and beverage fridge together or a single/dual zone wine fridge combination – store all your drinks in one place, at the right temp.

Highlights

• Models this combination is made up of -W93D-BLACK + BV122S-BLACK
• Energy Efficiency: ‘F / C’
• Rated capacity: 99 bottles (750mL Burgundy bottles) / 315 x 330mL cans
• Installation type: Freestanding or built-in
• Temperature settings: 5-20C / 1-10C
• Recessed handle with lock
• Dimensions: Height: 179cm, Width: 119cm, Depth: 57cm
• 3 Year Warranty – parts & labour (extendable)

Freestanding or undercounter installation

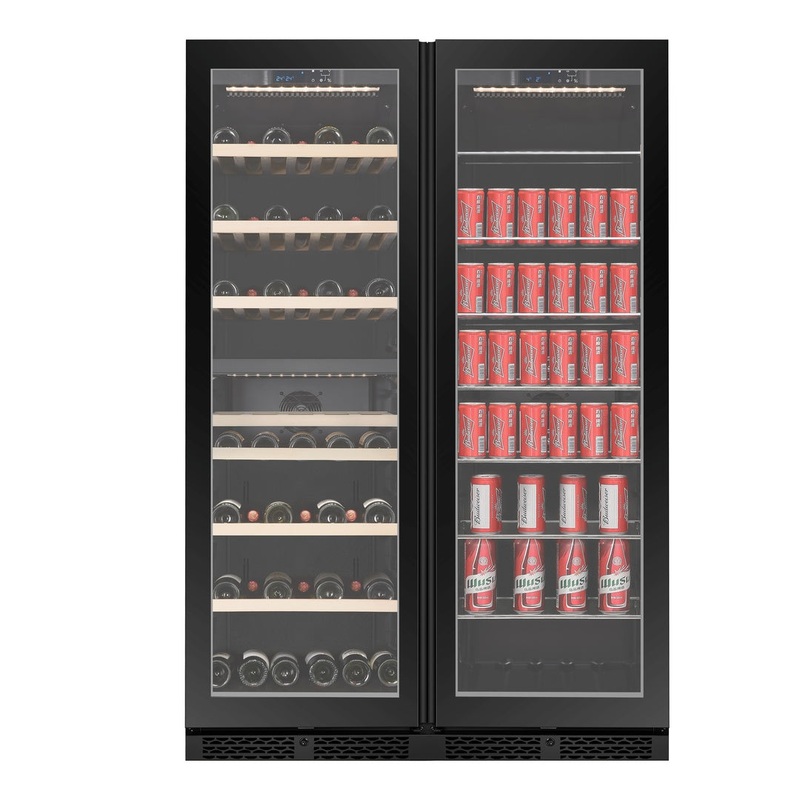

The WBV122D-BLACK from CELLA is part of the combination range meaning it is designed for short or long term storage of wine and beverage storage. The wine fridge shelves are all telescopic extending 80% of the way out giving you easy access to your bottles at the rear.

The beverage fridge features fixed glass shelves which can be moved around the interior or removed completely to allow for larger beer bottles or standing wine bottles alike.

LCD Touch Screen & built in alarms

The new CELLA storage units all feature an updated LCD display which allows you to easily control the temperature, lighting mode and there is also a built in child lock to ensure the settings can not be changed, ensuring your wines are kept safe.

All of the CELLA storage units also have built in alarms to keep your wines safe, there are numerous sensors around the wine fridge which monitor the temperature, whether the door has been left open etc – the alarms are both visual and audible.

Wine and Beverage storage in one place

The CELLA products have an interchangeable charcoal filter which can be found on the back wall of the wine fridge, it is designed to be easily unclipped and replaced. The membrane inside absorbs any unwanted odours to ensure the odours within the wine fridge are controlled by binding to the activated charcoal filter membrane.

The source of vibration within a wine fridge is due to the compressor running, IE, when it is cooling, most wine fridges will have the compressor mounted on rubber bushes to minimize the vibrations given off by the compressor, on the most part this will absorb the majority of the vibrations, however, CELLA have incorporated some additional measures to help reduce this further.

The combination range

The combination range from CELLA is a versatile set of appliances which is physically joined together. The two coolers are supplied with an extended grille and a fixing kit which allows you to join both fridges together so aesthetically, they look like one complete unit from the front.

The joining kit is a set of brackets which joins the two coolers together behind the door and is easy to assemble by removing the screw covers for the hinges – when the fridges are delivered to site, depending on the level of service you have chosen, the crew may fix the fridges together for you but it can also be done at a later date.

Upon receipt of the order you will be contacted to discuss which fridge you would like to have as the right hand and left hand hinged unit, even though the image shows the wine fridge on the left – it can be the other way round also.

Lighting and Energy Efficiency

CELLA appliances are equipped with exceptional lighting, with both ceiling lighting as well as side lights all the way down the sides of the appliances, the interior of the wine fridge is exceptionally bright which is brilliant for wine cellars or restaurants where the interior lighting is quite low level.

Why Shop with Elite Wine?

• The UK’s leading retailer ofwine fridges and wine cabinets
• Trading since 2016- wehave anextensiveknowledge of the wine cooler industry
• The exclusive UK distributor for the top brands – CELLA, Dunavox, Climadiff, Avintage, La Sommeliere and Dometic
• Theofficial UK partnerand only stockist for Swisscave
• Rated excellent on Trustpilot with5-Star reviews.

Learn more about ushere.

SPECIFICATION

• Freestanding or built-in wine and beverage fridge combination
• 99 Bottle Capacity (750ml Bordeaux/Burgundy bottles – Max 85mm diameter) / 315 x 330mL CANS
• Single temperature zones – both fridges
• Internal operating temperature: 5-20C in both zones (wine) / 1-10C (beverage)
• Black – full glass double glazed door
• Recessed handle for easy installation within cabinetry
• Full glass door with 2 layers of UV protection
• Automatic humidity management: 55-85%
• Heating and cooling ability with winter function (wine fridge only)
• Reversible door – we will contact you to discuss which door is reversed.
• Open door alarms
• Malfunction and high temperature alarm
• Warm white LED lighting – 3000k
• Lighting on/off function
• LCD touch display
• 80% telescopic rails (wine)
• 7 fixed glass shelves (beverage)
• Designed to be built-in or freestanding use
• 3 year manufacturers warranty

Cabinet Dimensions:

• Height: 1790mm
• Width: 1190mm
• Depth: 570mm

Cooling system:

• Fan assisted cooling system for even temperature distribution
• Inverter Compressor driven which is mounted on vibration free mountings
• Manual defrost

Performance and Consumption:

• Noise level: 43dB (wine) / 43dB (beverage)
• F Energy Class: 158kW/annum (wine) / 365kWh/annum (beverage)
• Rated power: 220-240V

PRODUCT FILES

INSTALLATION DIAGRAM

BOTTLE LOADING DIAGRAM (WINE) / BOTTLE LOADING DIAGRAM (BEVERAGE)

PRODUCT SPECIFICATION (WINE) / PRODUCT SPECIFICATION (BEVERAGE)

USER MANUAL
